18" Castline Silver Mogami 2319 Guitar Pedal Board Effects Switcher Patch Cable 1/4 TS Low Profile and Short Barrel Connectors

Product Code: CL027M2-18

$12.50

2 or more $11.00
4 or more $10.00
6 or more $8.00
- +

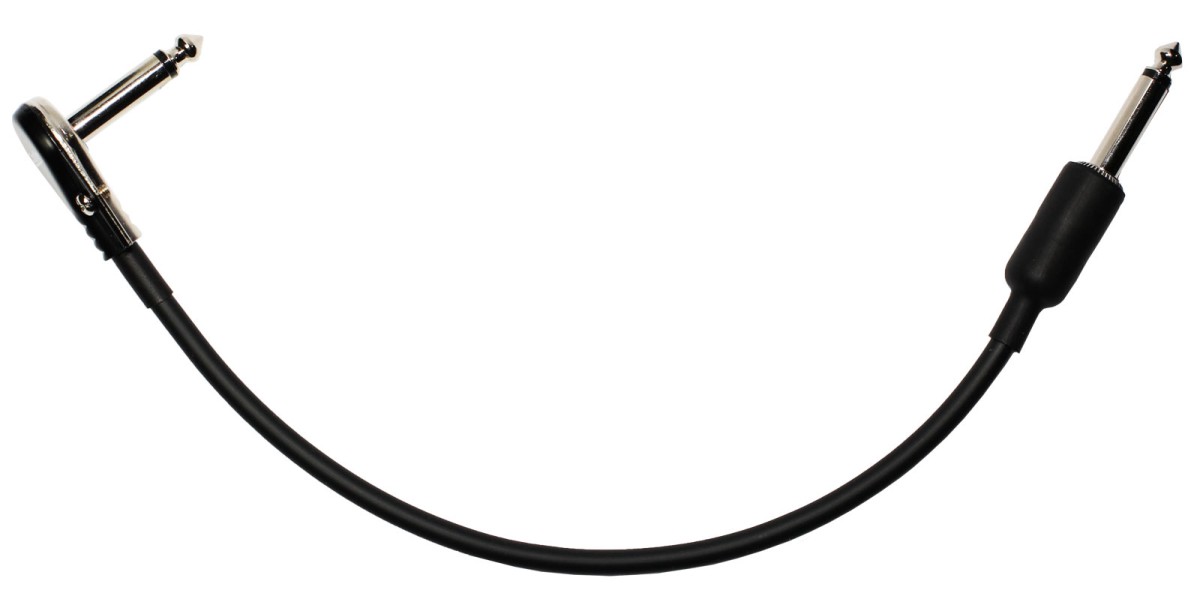

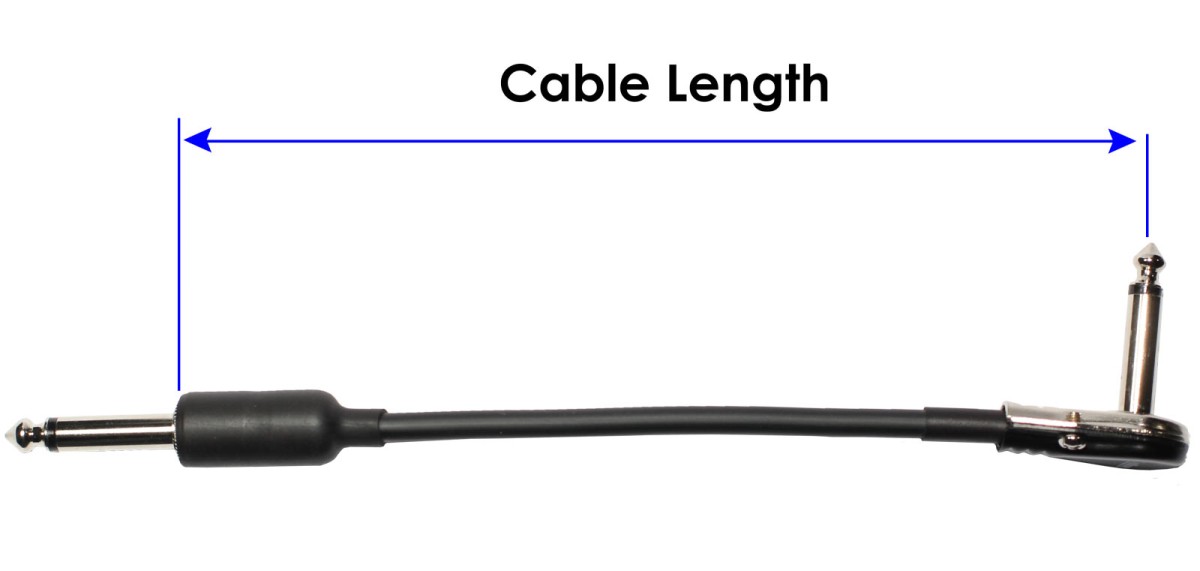

18" Patch Cable for Guitar Pedal Board (or for other uses) with 1/4" TS Castline Silver Pancake Low Profile Right Angle Male Connector and 1/4 TS Short Barrel Connector. Mogami 2319 Low Noise Cable.

Cables assembled in the USA

Please contact us if you have special requests

*Please Note:  It is possible that you may receive cables with partial or without brand name on the cable as we use rolls and we cut cables continuously.



Connector:

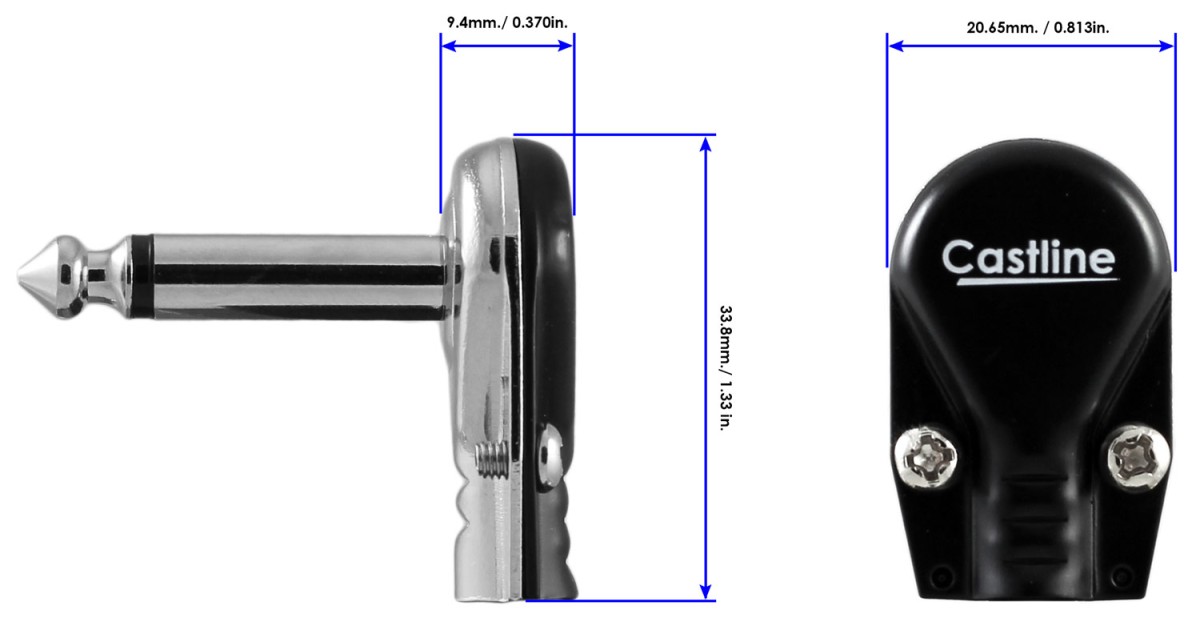

- Castline CT101S

- Black coated back cover (non-conductive)

- 1/4" Pancake mono plug nickel plated

- Low profile pancake design.

- Castline CT112S

- 1/4" Pancake mono plug nickel plated

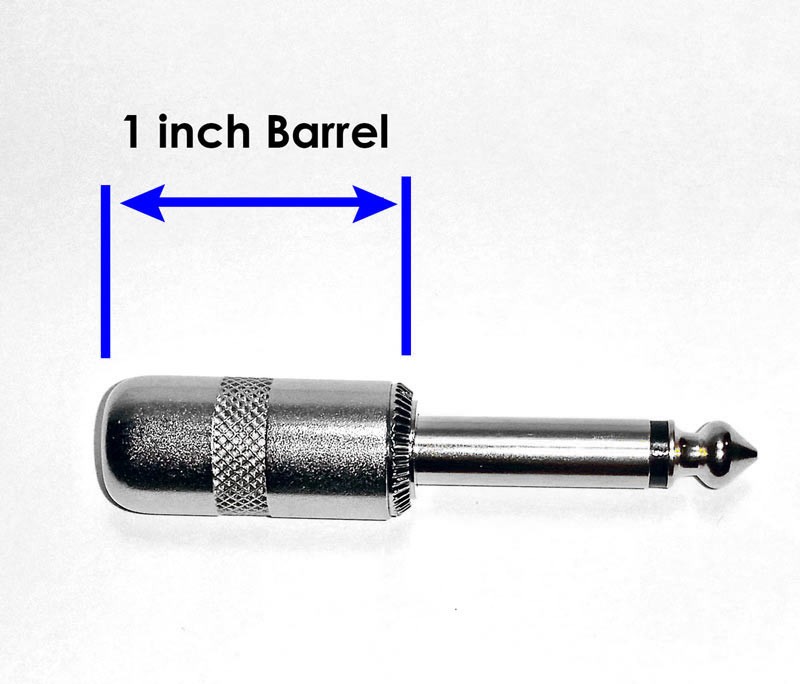

- 1 inch short barrel connector.



Cable:

- Mogami W2319 Low Noise Wire

- Tinned Copper Conductor -23 AWG

- Cable Diameter: 5.0mm (0.197")

- Flex Life: 11000 Cycles

Cable characteristics
Cable diameter (mm): 5.0Ø (0.197 inch)
Cable Part No. : Mogami W2319
Cable type: Unbalanced
Color: Black
Conductor material: Tinned copper
Conductor size: 0.305mm² (#23AWG)
Flex life: 11000
No. of conductor: 1
Tensile strength: 303 N
Connector characteristics
Connector part No. : CT101S; CT112S
Connector type: 1/4 TS
Contacts coating: Nickel plated
